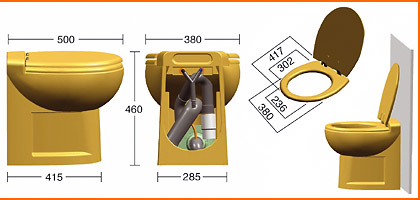

Silence Plus |
 |
 |
|

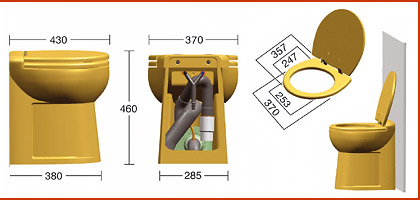

Silence Standard |
 |
 |
|
Silence Plus Short Version |
 |
 |
|
Silence Short |
 |
 |
|
Silence Standard Cut Version |
 |
 |
|
Silence Short Cut Version |
 |
 |
|

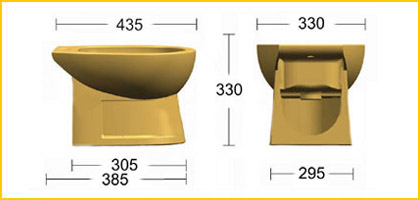

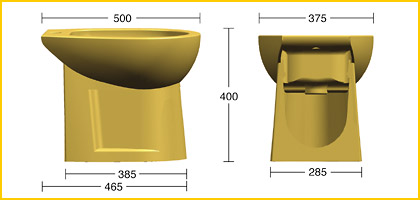

Bidet |
 |
|
|
Bidet mini |
 |
 |
|
Bidet short |
 |
 |
Silence has been designed to
be installed on boats. All the
results of the continuous research
activity of a leading company in the
field of marine toilets and
wastewater treatment have converged
in the designing and producing of
this WC where performances,
reliability, noiselessness, and
design reach the highest levels.
The porcelain bowl can be placed
solidly with the floor and the
posterior wall, obtaining the
maximum hygiene and cleaning
practicability in compliance with
the most modern tendencies.
The functioning cycle is completely
automatic and eliminates wastewater
by a high-performance turbine pump
that allows a wastewater's drainage
up to a height of 11 m. and a
distance of 90 m.
These characteristics give great
freedom of choice in the routing of
the pipes. The turbine drainage
system due to its revolving speed,
enables a complete fragmentation of
the organic residues, thus avoiding
any possibility of clogging.
The low water consumption (2,5 L.)
avoids to resort frequently to the
emptying of the holding tank and
allows, moreover, an eventual use of
the fresh water.
Silence has been designed in
order to safeguard of the
environment: indeed, it is
predisposed for the connection with
the holding tank and it advises to
empty the tank, when necessary, by
means of a light positioned on the
control panel.
Silence can be installed with
a centralized system (for more
toilet installations) or with a
single system.
Silence can also operate as a
bidet: the bowl can be supplied with
an optional bidet device operated by
a monocontrol mixer fixed on one
side of the unit and easily
operable.
The supply of the fresh water takes
place by means of a swivel nozzle
placed in a proper space in the
appliance.

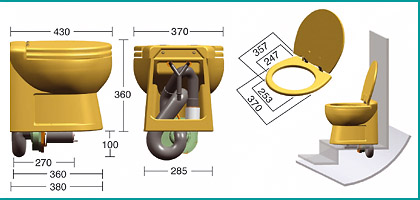

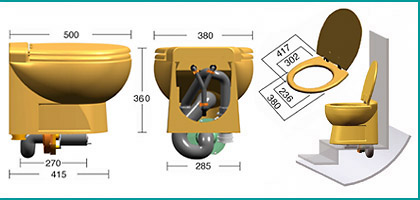

The Silence Short versions
are manufactured to allow the
installation of the WC on a step (should
this be required for other reasons)
whenever the standard dimensions
would require the recourse to a
seating position that is too high
(in the Short models, part of the
components is installed under the
step).

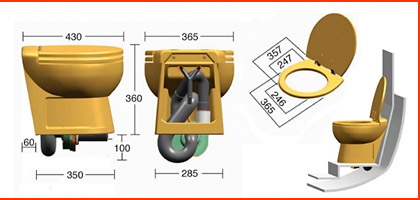

The Silence Cut versions are
manufactured to allow the
installation of the WC in the
presence of an oblique back wall.
This is normally occasioned by the
design of the hull and, therefore, a
lopsided WC allows the installation
even when the space is cut down to a
minimum.
|
|
ADVANTAGES: |
• Very simple to install.
• Perfectly silent operation.
• Completely automatic wash
cycle.
• Cannot become clogged.
• Bidet with fresh-water
mixer incorporated
(optional).
• Predisposed to discharge
in holding tank.
|
|
|
TECHNICAL SPECIFICATIONS: |
• White or bone-colored
porcelain WC.
• Seat and cover of wood and
polished polyester.
• Water consumption 2,5 L.
• Power supply 12/24 V DC.
|
|
 |
 |
|

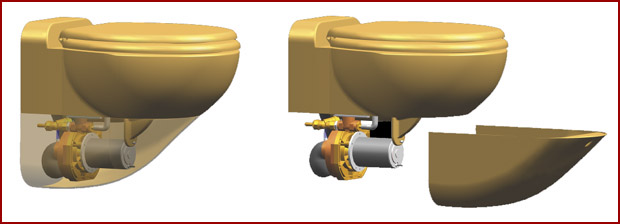

1. Vitreous-china bowl - 2. Seat and
cover - 3. Connect. bidet fresh
water - 4. Bidet mixer - 5.
Bowl-pump connection pipe - 6.
Centrifugal outlet pump - 7. Outlet
one-way valve - 8. Outlet pipe - 9.
Connection bowl inlet water |
 |
|
 |
Control panel with one switch
With this control panel a specific
quantity of water always remains in
the WC, which prevents organic
residues dirtying the ceramic sides.
After use of the toilet, pressing
the pushbutton starts a completely
automatic flushing cycle.
Advantage: simple to use.
|
|
Control panel with two switches
With this control panel the WC
remains completely dry when in the
rest position. Pressing the "before
use" button sends a specific
quantity of water into the WC, which
prevents organic residues dirtying
the ceramic sides. After using the
toilet, pressing the "after use"
pushbutton starts an automatic
flushing cycle that leaves the WC
completely clean and dry in the rest
position.
Advantage: the WC is completely dry
when in the rest position.
|
|
|
|
