Rutland
913
 The Rutland 913 is designed for marine use on board coastal and ocean going yachts usually over 10m in length. This unit will generate enough power to serve both domestic and engine batteries on board and the RWS200 Controller is available for dual battery charging.











The Rutland 913 is a popular sight in marinas, thousands are in use worldwide, boat owners like it's clean, aerodynamic lines and its quiet and continuous operation. Without doubt this latest marine model accumulates more energy than any other comparable windcharger available, you'll always see a Rutland spinning in the lightest of breezes!
  • Low wind speed start up of just 5 knots
  • Generates 90w @ 19 knots, 24w @ 10 knots
  • Delivers up to 250w
  • One way only fit fine profile efficient aerofoil blades
  • Three phase Rutland "unique" generator design
  • Automatic thermostat protection in prolonged gales
  • Modern, durable materials for reliability on the high seas
  • No radiated interference - complies with EEC directive 89/336/EEC

Balance of System Components

  • SR200 Regulator - Shunt type voltage regulator prevents battery overcharge
  • RWS200 Controller - Incorporates the SR200 Regulator, charge ammeter, dual battery voltage LED's, two battery connection terminals and switch for charging one or two battery banks simultaneously, solar panel input (maximum 50w when used in combination with Rutland 913 windcharger). Housed in attractive white case with simple to follow graphics for installation.
  • Marine Mounting Kit supplied in 2 sections of stainless steel plus deck fixing and fasteners.
  • Other system components
    Batteries, cable



Why is The Rutland so unique?
  • reliable

  • cost effective

  • efficient

  • durable

  • simple to install

  • simple to maintain
  • Because no other windcharger available uses a generator specifically designed for a wind turbine.
  • We developed our stator windings without an iron core for low friction so a Rutland offers the lowest wind speed start up by far of any design..
  • We encapsulate the stator coils in glass fibre to avoid common stator failures.
  • We fixed the shaft reducing the number of rotating parts.
  • We use two single magnets moulded into glass fibre avoiding the use of multiple magnets glued into position..
  • These features create a high inertia generator whose flywheel effect generates smooth, continuous power between gusts when other wind turbines have lost the power in the wind.
  • All our designs are tested in real wind conditions and performance quoted on long term data(most companies quote outputs based on fixed wind speed)
  • We test and record results of every generator built.

Technical Data

Rutland 913 Windcharger

The Rutland 913 is our most popular battery charging wind turbine designed for use on board coastal and long distance cruising sailboats. It is also ideal for providing power for off- grid homes.

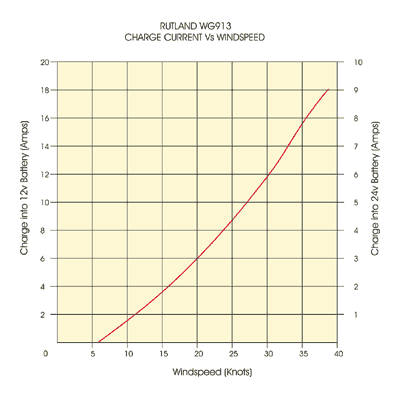

Below you will see the performance specification and the dimensions of the Rutland 913.
Wind turbine performance specifications are not created equal.

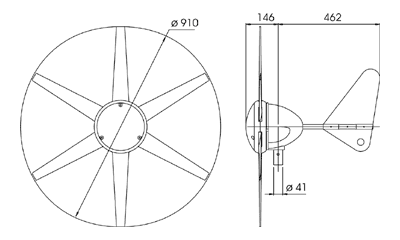

Dimensions


Shipping Specification (mm)
1 Carton 360 x 360 x 600
Nett weight:10.5kg
Gross weight: 13kg
