900 Model Automatic Bilge Pump

900 GPH (3497 LPH) Capacity

900–6 VAM (6 volt)
900–12 VAM (12 volt)
900–24 VAM (24 volt)
900–32 VAM (32 volt)

UL-listed
Ignition-protected
Built-in automatic float switch (contains no mercury)
Low 4-amp draw (12 volt)
Double-insulated drive design will not allow stray current leakage into bilge
Monel drive shaft
Bronze bearings
Tinned & sealed copper cable
Uses 3/4" diameter hose
Available in 6, 12, 24 and 32 volts

1200 Model Automatic Bilge Pump

1200 GPH (4542 LPH) Capacity

1200–12 VAM (12 volt)
1200–24 VAM (24 volt)
1200–32 VAM (32 volt)

UL-listed
Ignition-protected
Built-in automatic float switch (contains no mercury)
Low 4-amp draw (12 volt)
Double-insulated drive design will not allow stray current leakage into bilge
Monel drive shaft
Bronze bearings
Tinned & sealed copper cable
Uses 111/8" diameter hose
Available in 12, 24 and 32 volts

Automatic Shower Sump Pump

Use in draining shower pans installed below the water lines. Housed in a plastic sump, the Automatic Shower Sump Pump features the same Lovett quality as all our pumps. This pump has a large intake filter screen that is removable without tools for easy cleaning with a 3/4" diameter discharge connection.

12VSS – 12 volt Shower Sump Pump
24VSS – 24 volt Shower Sump Pump
32VSS – 32 volt Shower Sump Pump

UL-listed
Ignition-protected
Built-in automatic float switch (contains no mercury)
Clear acrylic tank
Removable brass screen for easy cleaning
900 GPH (3407 LPH) capacity
Low 4-amp draw (12 volt)
Monel drive shaft
Bronze bearings
Tinned & sealed copper cable
Uses 3/4" diameter hose
Available in 12, 24 & 32 volts

Pump Repair Kit and Replacement Parts The Lovett pump is the only submersible bilge pump that is field-serviceable with a full complement of spare parts available.
	Pump Repair Item #3200 2 Belts Gasket Automatic Microswitch Instructions		Replacement Drive Belt Kit Item #3201 2 Belts
	Pump Drive Repair Kit Item #3202 2 Belts Gasket Automatic Microswitch Bearing Tube Monel Shaft Pulley Plastic Cam Ball Instructions		Pump Motor Repair Kit Item #3203 – 12 volt Item #3204 – 6 volt Item #3205 – 24 volt Item #3206 – 32 volt Includes parts from 3202 plus: 6, 12, 24 or 32 volt Motor Motor Mounts Wire Connector Wire Insulation Tube Terminal Rubber Disk
Other Replacement Parts Item # 900-2132 – 3/4" Copper Discharge Tube Item # 2149 – 90 Degree Discharge Tube Item # 3207 – Fastener Kit Item # 3208 – Bilge Pump Float Kit (900, 1200, 2000) Item # 3210 – Cable Kit

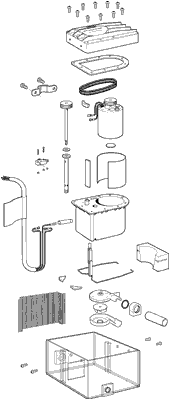

Shower Sump Pump Replacement Parts
	Shower Sump Pump Filter Screen Item #2148		Shower Sump Pump Tank Lid Item #2155
Replacement Sump Pump 12VSSRP – 12 volt Replacement Pump w/Screen 24VSSRP – 24 volt Replacement Pump w/Screen 32VSSRP – 32 volt Replacement Pump w/Screen Replacement Pump Unit for the Lovett Sump Pump Shower Sump includes new: Filter screen Built-in automatic float switch Tinned & sealed copper cable		Other Replacement Parts Item # 2147 – Clear Plastic Shower Tank with Inlet Item # 2159 – 3/4" Discharge Tube Item # 3209 – Shower Sump Pump Float Kit

Lovett 900 Pump Instructions

The following is a complete list of instructions for the Lovett 900 Automatic Bilge Pump.

Read these instructions before installation!

FAILURE TO FOLLOW THE LISTED INSTRUCTIONS WILL VOID YOUR WARRANTY

Lovett 900 Automatic Bilge Pump
Installation Data and Description

The Lovett pump is unique in its design. It uses only one gasket in its construction. There are no seals around moving parts to wear and leak. The principle of air compressed over water, in a chamber open at the bottom and closed at the top, effectively prevents bilge water from entering the motor and switch components, unless the pump is submerged to a depth of more than 28 feet or is upset while submerged, thereby losing the compressed air in the air lock, through which the electric cable and pump shaft enter the interior casing. Freezing will not damage the plastic parts of this pump. Call (513) 738-2170 or (800) 673-5976 if you have any installation questions.

FASTEN PUMP SECURELY TO HULL as near level as possible. Maximum installation angle for satisfactory results –10 degrees in any direction to permit normal operation when boat is heeling.

FASTEN PUMP DOWN SO THAT IT CANNOT UPSET

Installation

Run the 3/4" ID discharge hose from the pump as straight as possible to through-hull fitting, mounted at least 10 inches above the waterline. DO NOT use a check valve. DO NOT trap discharge line. DO NOT run two pumps into one discharge.

Connecting the pump to a smaller ID discharge hose will greatly reduce its capacity. Wire the pump in accordance with "Fire Protection Standards for Motor Craft" N.F.P.A. #302; USCG Sub Part I, 46CFR, Part 183, and all applicable ABYC standards.

Fuse and AWG wire size to 40 feet from pump to power supply
12 volts – 5 Amp Fuse - #14 Wire 24 and 32 Volt – 3 Amp Fuse - #14 Wire 6 Volt – 8 Amp Fuse - #10 Wire

Automatic switch will burn out immediately if the pump wires are not connected as they are marked. Double-check your boat wiring before making connections. Test with voltmeter or light, not the pump. Make all connections well above bilge water level, tape all connections, and secure wire to prevent chafing. DO NOT connect automatic to one battery and manual to another. Automatic requires 2 inches of water to turn on.

Wiring Diagram

Capacity
900-6VAM 6 Volts 668 GPH 0 Head 6 Volts 470 GPH 3 Ft. Head	900-24VAM 26.2 Volts 887 GPH 0 Head 24 Volts 780 GPH 0 Head 24 Volts 574 GPH 3 Ft. Head
900-12VAM 13.2 Volts 900 GPH 0 Head 12 Volts 782 GPH 0 Head 12 Volts 550 GPH 3 Ft. Head	900-32VAM 35.2 Volts 900 GPH 0 Head 32 Volts 782 GPH 0 Head 32 Volts 550 GPH 3 Ft. Head

900 Model Automatic Bilge Pump
